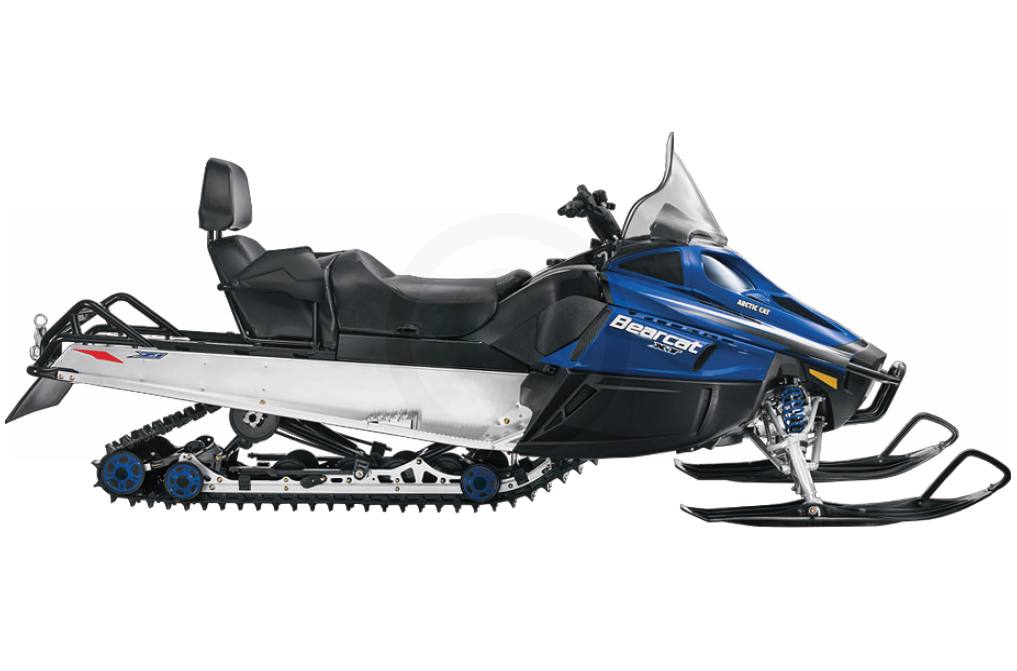

2010 Arctic Cat Bearcat Z1 XT

THE BEST SPORT UTILITY SLED MONEY CAN BUY !!

Now until September 30, 2010
$1,800.00 Off MSRP

Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

What sets this Bearcat® apart trom the rest is a powerful 4-stroke Z1™ engine. It's masterful level of engineering with 123 HP that’s quiet, incredibly low maintenance and produces low emissions. Combined with our supenor Body-Saving Ride Technology that boasts a Twin Spar™ chassis that’s one of the most durable rides on the market today. The wide, smooth and stable 156" x 20" x 1.25" track is reliable in harsh climates, and articulating slide-rail suspension, 8" skis and a 2-up detachable seat guarantee that this sled is ideal for both work and play. And these are just the tip of this trail-breaking iceberg.


4-Stroke Z1 Engine: The perfect engine for a trail-blazing moster that is the Z1™. This is a 4-stroke, 1056cc twin with electronic fuel injection. This 2-cylinder power plant produces awesome power and performance.


Twin Spar™ Chassis: Designed and manufactured to be incredibly rigid, the Twin Spar™ chassis employs two box-aluminum spars triangulated with the steering supports and tunnel spars. Self—piercing rivet construction ensures joint rigidity and long—lasting strength. The Twin Spar chassis places you in the perfect neutral riding position. With a taller seat and handlebar location, this position maximizes comfort and control in all riding conditions.


8" Skis: Bearcats come standard with 8" wide skis for better flotation.


Articulating Slide-Rail Suspension: The skid frame gives you the option to choose and articulating or stright-rail frame setup. Loosen the springs for full articulating motion or tighten to create a straight-rail suspension. The straight-rail setup is just what you need for better traction when hauling or towing.


2-Up Detachable Seat: The backrest and handholds are a passenger's best friend. For extended solo rides, remove the passenger seat and your'll find enough room to pack a week's worth of supplies.


156" X 20" X 1.25" Track: The Bearcat® 570 XT and Z1™ XT come standard with 156" X 20" X 1.25" wide track for increased flotation and traction.

    Engine
    • Type: 4-stroke
    • Displacement: 1056 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 98 x 70 mm
    • Lubrication: Dry sump
    • Ignition: Full transistor/coil at plug
    • Carburetion: 48 mm dual throttle body EFI
    • Exhaust: Stainless steel muffler
    • Fuel Capacity: 17 gal.
    Powertrain
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VII double-wishbone A-arms with hydraulic twin tube shocks and adjustable preload springs
    • Front travel: 8.5 in.
    • Rear suspension: Articulating slide-rail, adjustable torsion springs, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    • Rear travel: 13 in.
    Dimensions
    • Overall length: 137 in.
    • Overall width: 52 in.
    • Ski stance: 40-44 in. (adjustable)
    • Track width: 20 in.
    • Track length: 156 in.
    • Lug: 1.25 in.
    Colors
    • Blue
    • Green
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip meter
    • Electric gas gauge
    • Clock
    • Low oil light
    • Electric start
    • Reverse
    • High/low hand warmer
    • High/low thumb warmer
    • High windshield
    • Detachable passenger seat
    • Wind deflectors
    • Tunnel rails
    • 8½ skis
    • Mountain strap
    • Hitch
    • Mirrors
    • Accessory outlet
    Optional Features
    • Tether Switch
    • Cargo rack
    • Side rails
    • Heated driver and passenger seats
    • Passenger hand warmers
    • 3rd seat
    • Gear bag
    • Radiator
    • Engine heater
    • Remote electric start
    • Winch
    • Sway bar
    • Front & rear receiver bumpers
    • Receiver hitch
    • Snowplow push frame
    • Extra-high windshield

    Specifications

    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel muffler
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with hydraulic twin tube shocks and adjustable preload springs
    Front Travel 8.5 in.
    Rear Suspension Articulating slide-rail, adjustable torsion springs, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    Rear Travel 13 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 40-44 in. (adjustable)
    Track Dimensions Width: 20 in.; Length: 156 in.
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb) headlight
    Fuel Capacity 17 gal.
    Color Blue, Green
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Standard

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model Bearcat Z1 XT
    Style Utility
    MSRP* $11,799.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel muffler
    Alternator
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb) headlight
    Fuel Capacity 17 gal.
    Dry Weight
    Windshield
    Color Blue, Green
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Standard
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with hydraulic twin tube shocks and adjustable preload springs
    Front Travel 8.5 in.
    Rear Suspension Articulating slide-rail, adjustable torsion springs, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    Rear Travel 13 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 40-44 in. (adjustable)
    Track Type
    Track Dimensions Width: 20 in.; Length: 156 in.
