New Units » Arctic Cat » Z1 Turbo EXT
Model Quick Search

$13,699.00
$11,299.00
$2,400.00

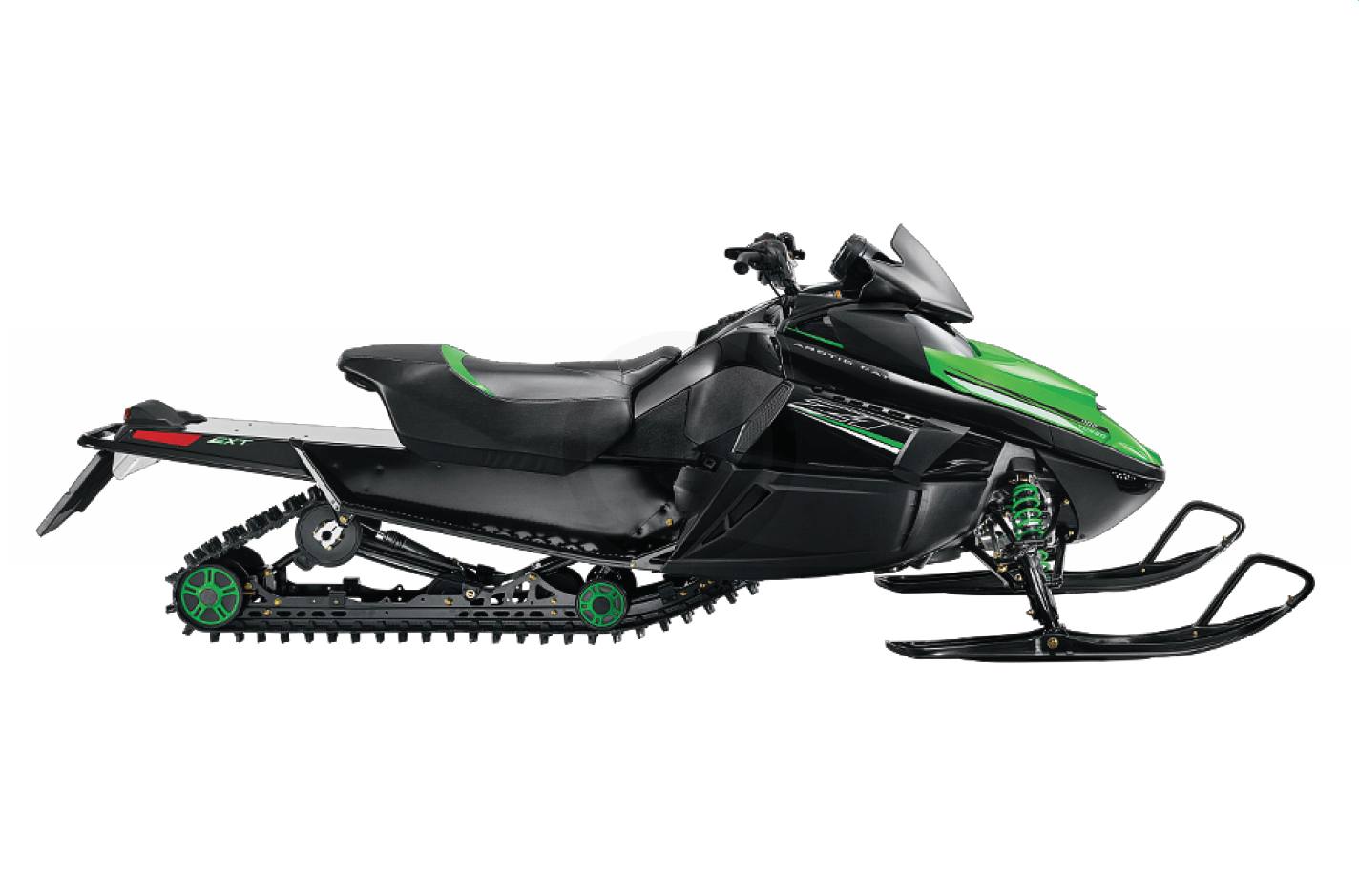

2010 Arctic Cat Z1 Turbo EXT

GOT HORSEPOWER ??? YES WE DO !!!

Now until September 30, 2010
$2,400.00 Off MSRP

Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

This is a history-making sled, The World's Fastest 4-stroke snowmobile with a longer track. The most powerful production engine in snowmobile history. 177 horses push you forward with blinding speed and 121 ft-lbs. of torque at 7300 R.P.M. Guiding you along your journey is the added bonus of a 144" x 15" x 1.25" single-ply Cobra™ track, a light and free-rolling tool for incredible traction no matter where you decide to blaze a trail. The ultra rigid Twin Spar™ chassis braves the elements with suspension that makes the most of our Body-Saving Technology in the process. This is quite possibly the greatest marriage of power, performance and comfort, all in one speed-hungry package.


Slide-Action Rear Suspension™: Straight from the Sno Pro® race sled. Slide-Action Rear Suspension™ incorporates a U—shaped front arm slot that fits over a shaft bolted across the tunnel. This creates a half—inch of "sliding" movement, preventing the front arm from torque locking. Better still, it helps keep the skis planted during acceleration, all but eliminating ski lift when gassing it through the corners.


4-Stroke Z1 Turbo Engine: The 4-stroke, 1056 twin with electronic fuel injection was already perfect, but we added an inter-cooled turbocharger. The net effect is nothing short of jaw-dropping. A reliable engine that won't lose power at high elevation. So if you want the highest horsepower in the industry, this is your engine.


Twin Spar™ Chassis: Designed and manufactured to be incredibly rigid, the Twin Spar™ chassis employs two box-aluminum spars triangulated with the steering supports and tunnel spars. Self—piercing rivet construction ensures joint rigidity and long—lasting strength. The Twin Spar chassis places you in the perfect neutral riding position. With a taller seat and handlebar location, this position maximizes comfort and control in all riding conditions.


144" x 15" x 1.25" Cobra™ Track - When you want the benefits of a long track and a smooth 4-stroke, the Z1™ Turbo EXT fits the bill with its 144" x 15" x 1.25" Cobra™ Track


Infinite Rider Positioning™: The adjustable handlebar lets you fine your ideal riding position. Pair IRP™ with the Twin Spart™ chassis and you can fine-tune the riding position to maximize comfort and control in all riding conditions.


New Twin Spar™ Rear End: Our Twin Spar™ chassis’ rear end went through a little modification. Or beautification, whichever you prefer. We’ve removed the rear plastic trunk and added a new tunnel design. We also added a new LED taillight, snowflap and rear bumper. It’s definitely one hot—looking chassis.

    Engine
    • Type: 4-stroke
    • Displacement: 1056 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 98 x 70 mm
    • Lubrication: Dry Sump
    • Ignition: Full transistor/coil at plug
    • Carburetion: 46 mm single throttle body EFI
    • Exhaust: Turbocharger with stainless steel muffler
    • Fuel Capacity: 10.8 gal.
    Powertrain
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Color
    • Green
    Suspension
    • Front suspension: AWS™ VII double-wishbone A-arms with FOX® Zero Pro (IFP) shocks and sway bar
    • Front travel: 9.5 in.
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and FOX® Zero Pro (IFP) rear arm shock
    • Rear travel: 13.5 in.
    Dimensions
    • Overall length: 125 in.
    • Overall width: 47.25 in.
    • Ski stance: 43 in.
    • Track width: 15 in.
    • Track length: 144 in.
    • Lug: 1.25 in.
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Electric gas gauge
    • Low oil light
    • Low battery light
    • Coolant overheat light
    • Clock
    • Electric start
    • Reverse
    • High/low hand warmer
    • High/low thumb warmer
    • Accessory outlet
    • Low windshield
    • Deluxe Gauge
    • Adjustable handlebar
    Optional Features
    • Mirrors, High windshield, Tether switch,
    • 2-up seat, Hitch, Heated seat, Engine heater,
    • Rack, Sport bumper, Cat Comm™

    Specifications

    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel muffler
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX® Zero Pro (IFP) shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX® Zero Pro (IFP) rear arm shock
    Rear Travel 13.5 in.
    Ski Stance 43 in.
    Track Dimensions 144" x 14" x 1.25"
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 10.8 gal.
    Windshield Low
    Color Green
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors Optional

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model Z1 Turbo EXT
    Style Performance
    MSRP* $13,699.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel muffler
    Alternator
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 10.8 gal.
    Dry Weight
    Windshield Low
    Color Green
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX® Zero Pro (IFP) shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX® Zero Pro (IFP) rear arm shock
    Rear Travel 13.5 in.
    Ski Type
    Ski Stance 43 in.
    Track Type
    Track Dimensions 144" x 14" x 1.25"
